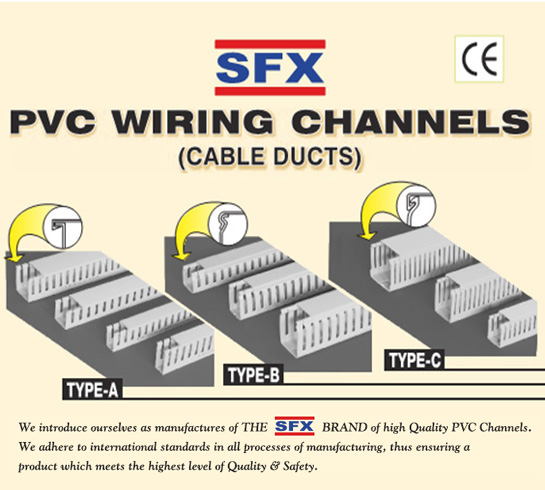

PVC Wiring Channels
PVC Cable Management Systems

Our salient features are :
  • Made of Rigid Poly Vinyl Chloride (PVC) of high Tensile & Compressive Strength.
  • Highly durable, will not Crack, Peel or Chip, also resistant to Oil, Fungus, Salt Solutions etc.
  • Non Brittle, Non Inflammable and also Warp Proof.
  • Fast & Efficient locking Guaranted because of Specially Designed Duct & Cover.
  • Slotting Patterns Prevents Wire from Popping up, While Removing Cover.
  • Elongated Slots at the Bottom makes Flexible Mounting Possible.
  • Special orders regarding Colours, Length or Modification of Existing range can be manufactured as per your Specification on requirement.

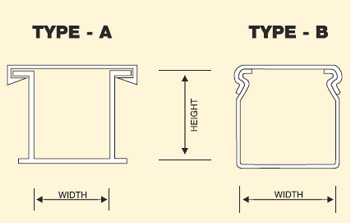

Sr. No Section Size Height X Width (mm²)
Single Core Unsheathed Cable
Cable Housing Capacity No of Wires
OD 2.95 mm
1.5 mm²		 OD 3.65 mm
2.5 mm²		 OD 4.35 mm
4 mm²
1 15 X 15
13 8 6
2 15 X 25
22 14 10
3 25 X 25
36 23 17
4 30 X 25
43 28 20
5 40 X 30
69 45 32
6 45 X 25
65 42 30
7 45 X 30
78 51 36
8 45 X 45
116 76 54
9 45 X 60
155 101 71
10 60 X 25
86 56 40
11 60 X 45
155 101 71
12 60 X 60
207 135 95
13 75 X 25
108 70 50
14 75 X 45
194 126 89
15 75 X 60
225 165 128
16 75 X 75
323 211 149
17 100 X 75
431 281 198
18 100 X 100
575 375 264

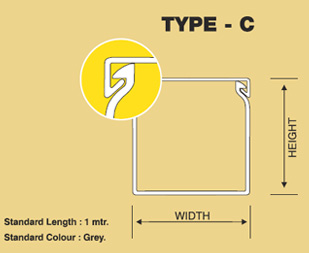

PVC Cable Management Systems

Sl. No Channel With
Cover
W x H (mm)
Cable Housing Capacity (Nos)
1.5 mm²
OD 3.18mm
(16 AWG)		 2.5 mm²
OD 3.53mm
(14 AWG)		 4.0 mm²
OD 4.01mm
(12 AWG)
1 25 X 25
19 15 12
2 25 X 30
37 30 23
3 25 X 40
48 39 31
4 25 X 60
72 57 45
5 25 X 80
92 75 59
6 25 X 100
126 105 81
7 40 X 40
81 65 51
8 40 X 60
121 98 77
9 40 X 80
160 130 102
10 40 X 100
200 164 128
11 60 X 60
180 146 114
12 60 X 80
246 199 155
13 60 X 100
308 247 194
14 80 X 60
251 203 159
15 80 X 80
337 272 214
16 80 X 100
416 332 248
17 100 X 80
425 344 270
18 100 X 100
531 429 336
19 150 X 100
805 553 512

PVC Cable Management Systems
